HD CMOS Camera Module for Doorbell
Camera Compact Module, referred to as CCM, is an electronic device that is crucial for image capture. In short, it is a device that converts the optical signal of an object into a digital signal that can be read and stored. It is mainly composed of a lens, image sensor, IR filter, circuit board and other components.
Lens: It is composed of a refraction layer and a filter. The refraction layer has a multi-layer structure. It is mixed with glass or plastic and glass-plastic to complete multiple light refractions and then project to the photosensitive chip. The filter is used to filter out some light that can be observed by the naked eye and can affect the color effect band.

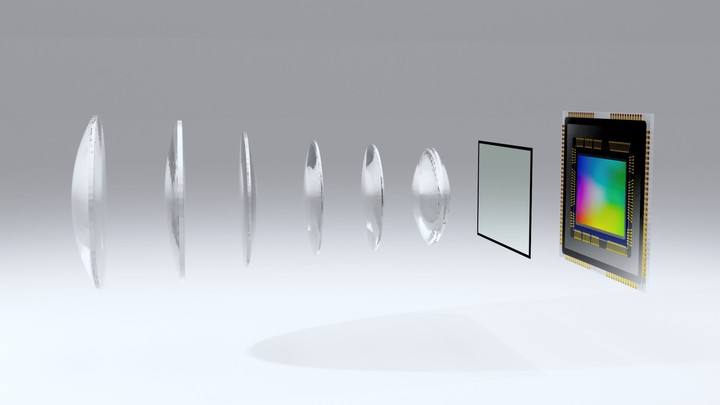

A modern lens is generally a lens group consisting of several lenses. Lenses are divided into a glass (GLASS) and plastic (PLASTIC) according to the material. For example, the 5P lens represents a lens composed of 5 plastic lenses, and 1G+5P represents a glass-plastic hybrid lens composed of a glass lens and 5 plastic lenses.
Image sensor, including CMOS image sensor and CCD image sensor, is the core component of the camera module, and its quality directly affects the performance of CCM.
The function of the IR filter is to filter out the ultraviolet and infrared light that cannot be observed by the human eye, reflect the unnecessary light, remove impurities to prevent the color cast of the image, and its characteristics are also very important for the imaging effect of the final camera. effect.

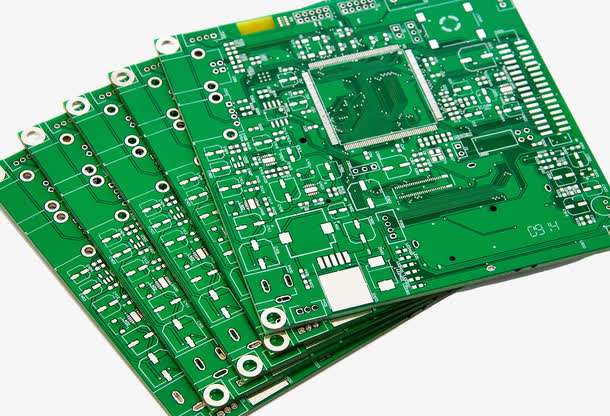

The integrated circuit board is composed of a variety of electronic material components and the main control processing chip. Among them, the electronic components mainly play the role of controlling the voltage, reducing the power consumption, and filtering the interference impurities. The function of the main control processing chip is similar to that of the computer CPU. It mainly compresses and organizes the color data transmitted by the chip and optimizes the effect. Therefore, the computing power of the main control chip plays an important role in the effect presented by the camera module.
HD CMOS Camera Module with PCB0301K Sensor
Camera module for video door phone, price affordable, quality great, widely recommend, sample free.HD CMOS Camera Module with OV7725 Sensor
Professional video doorbell camera module with good image quality, 3.6mm lens, 6pcs white Led, 38X55mm Size could be customizedHD CMOS Camera Module with Super BLC
High quality doorbell camera module with super BLC function, sharp image effect and suitable for outdoor machine under strong light environmentHD CMOS Camera Module with FH7440 + 8510 Sensor
Special designed for video door phone products, image clear, high colour reproduction, night vision sharpThe field of view lens shows a wider range of your visitor and their surroundings. If you have an unexpected visitor, chances are you may want to see the car they drove or if they brought anything with them. This lens does just that. You'll want to aim for the highest field of view lens possible for your doorbell. The best video doorbells often have a lens of 160 degrees or higher of the best view. Also, u could choose different lenses as your exact applied environments.
