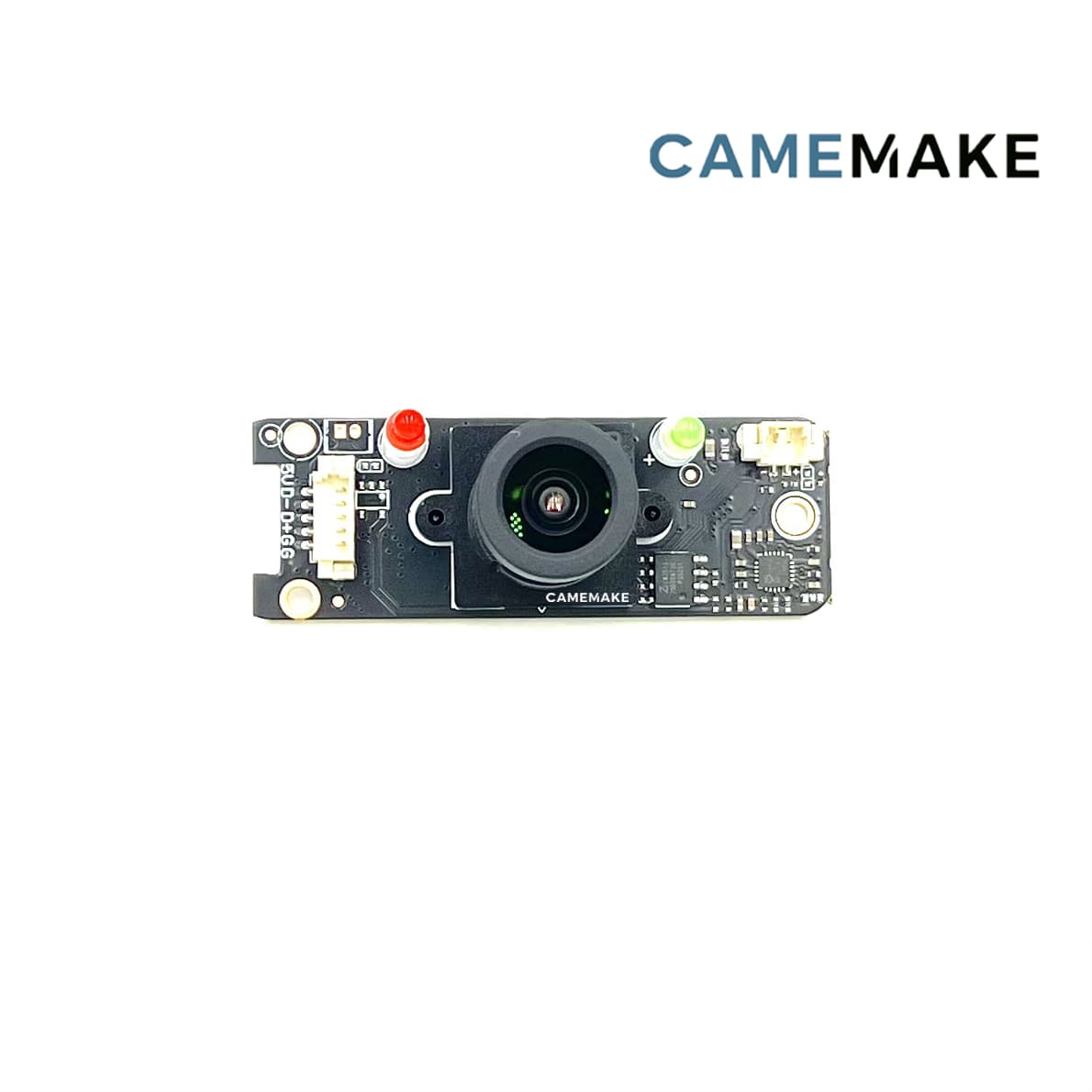

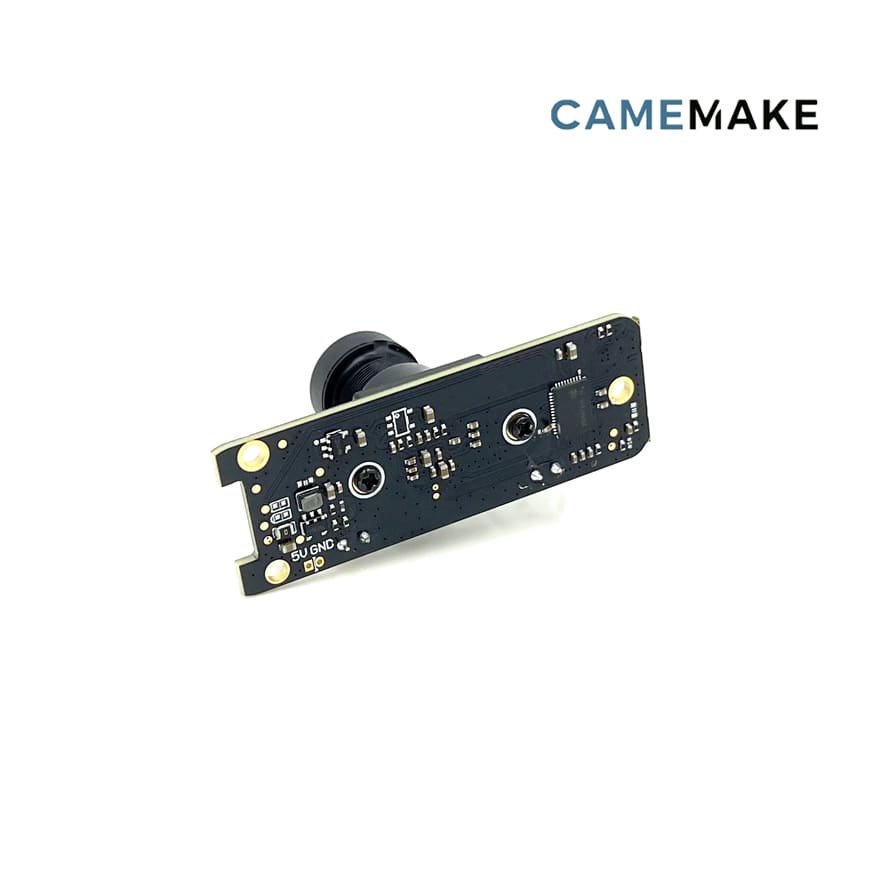

Wide-Angle USB Camera with Galaxycore GC2083 Sensor
- PCB Dimensions: 55 mm × 19 mm
- Lens Mount: M12 × 0.5
- Lens Distortion: ≤ 117 %
- Field of View: DFOV 96°, HFOV 80°, VFOV 43°
Description
Reviews
Product Overview
The CM_USB2_12 is an ultra-wide-angle USB camera module featuring the high-performance Galaxycore GC2083 sensor, specifically designed for applications requiring expansive field coverage in compact form factors. With an impressive 96° diagonal field of view, this module captures broad scenes with comprehensive coverage, making it ideal for smart vending machines, ATMs, and large-screen interactive interfaces where space optimization and wide-angle imaging are critical.
The unique elongated PCB design (55×19mm) allows for seamless integration into narrow spaces and slim-profile devices, while maintaining Full HD 1080p video quality. The module's USB-UVC compliance ensures plug-and-play operation across diverse platforms, providing manufacturers with a versatile imaging solution for modern smart panel applications.
Key Features
- Ultra-wide 96° diagonal field of view for maximum scene coverage
- Unique elongated PCB design (55×19mm) for slim-profile integration
- Full HD 1080p resolution with Galaxycore GC2083 sensor
- Integrated ISP with microphone support for audio-video synchronization
- M12×0.5 industrial lens mount for reliable optical assembly
- Optimized for smart panels and interactive interfaces
- USB-UVC plug-and-play compatibility across multiple platforms
- Dual codec support (YUY2/MJPEG) for flexible implementation
Technical Specifications
Sensor Information
Resolution Performance
Optical Characteristics
Physical Properties
Detailed Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Sensor Brand | Galaxycore | Leading manufacturer of high-performance imaging sensors |
| Sensor Model | GC2083 | Full HD sensor optimized for wide-angle applications |
| Sensor Size | 1/3.02" | Compact sensor size enabling slim design |
| Sensor Pixel Size | 2.7 µm × 2.7 µm | Optimized pixel size for wide-angle light capture |
| Sensor Resolution | 1920 × 1080 | Full HD resolution for detailed wide-angle imaging |
| Shutter Type | Rolling | Electronic rolling shutter |
| ISP Support | Yes | Integrated Image Signal Processor |
| Microphone Support | Yes | Audio capture capability for interactive applications |
| Auto Focus | No | Fixed focus optimized for wide-angle applications |
| Lens Type | Wide | Ultra-wide-angle lens for maximum coverage |
| Field of View | DFOV 96°, HFOV 80°, VFOV 43° | Exceptional wide coverage for panel applications |
| Lens Mount | M12 × 0.5 | Industrial-standard lens mount |
| Distortion | ≤ 17 % | Characteristic barrel distortion of ultra-wide lenses |
| PCB Size | 55 × 19 mm | Elongated form factor for slim integration |
| Connection Type | USB-UVC | Universal Video Class compliant |
| Codec Support | YUY2 / MJPEG | Dual codec support for application flexibility |
Applications
The CM_USB2_12 wide-angle camera module is specifically designed for modern interactive and self-service applications where expansive field coverage and slim-profile integration are essential. Its unique combination of ultra-wide imaging and elongated form factor makes it ideal for next-generation smart devices.
Smart Vending Machines
Next-generation vending systems requiring customer interaction monitoring, age verification, and user experience analytics. The wide field of view captures the entire interaction area from compact mounting positions.
ATMs
Automated teller machines and self-service banking terminals requiring user identification, transaction security, and customer assistance monitoring. The slim design fits within constrained ATM housings.
Large-Screen Interfaces
Interactive digital signage, information displays, and collaborative workstations where the camera must capture multiple users or large interaction areas from minimal mounting depth.
Intelligent Terminals
Self-service kiosks, check-in systems, and information terminals requiring user interaction monitoring and assistance capabilities. The wide angle ensures comprehensive coverage of the user interface area.
Interactive Whiteboards
Educational and collaborative displays where the camera needs to capture the entire presentation area and multiple participants from a compact mounting solution.
Smart Retail Systems
Automated retail solutions, smart shelves, and customer analytics systems requiring wide-area coverage from discreet, space-constrained mounting positions.
Ordering Information
SKU: CM_USB2_12
Vendor: Camemake Technologies
Lead Time: Typically 3-4 weeks for standard orders
Minimum Order: 1 unit (evaluation samples available)
Customization: Cable routing options, specific lens corrections, and custom housing designs available for volume OEM orders
Support: Comprehensive technical documentation, integration guides, and engineering support for panel integration projects
Package Contents
Note: Slim-profile mounting brackets, extended cables with right-angle connectors, and distortion correction software are available separately. Please consult our smart panel solutions catalog for accessories designed for ultra-wide-angle applications.
Technical Support
Camemake provides specialized technical support for the CM_USB2_12 wide-angle camera module, including detailed integration guides for slim-profile designs, distortion correction algorithms, and panel mounting solutions. Our engineering team offers consultation services for smart device integration and wide-angle imaging applications.
For developers and system integrators, we provide a comprehensive SDK with wide-angle correction libraries, supporting Windows, Linux, and Android platforms. Documentation includes mechanical integration guidelines, optical performance characteristics, and software tools for distortion compensation in ultra-wide-angle applications.
