Versatile Full HD USB Camera with Omnivision OV2735 Sensor
- PCB Dimensions: 38 mm × 38 mm
- Lens Mount: M12 × 0.35
- Lens Distortion: ≤ 1.0 %
- Field of View: DFOV 92°, HFOV82°, VFOV 52°
Description
Reviews
Product Overview

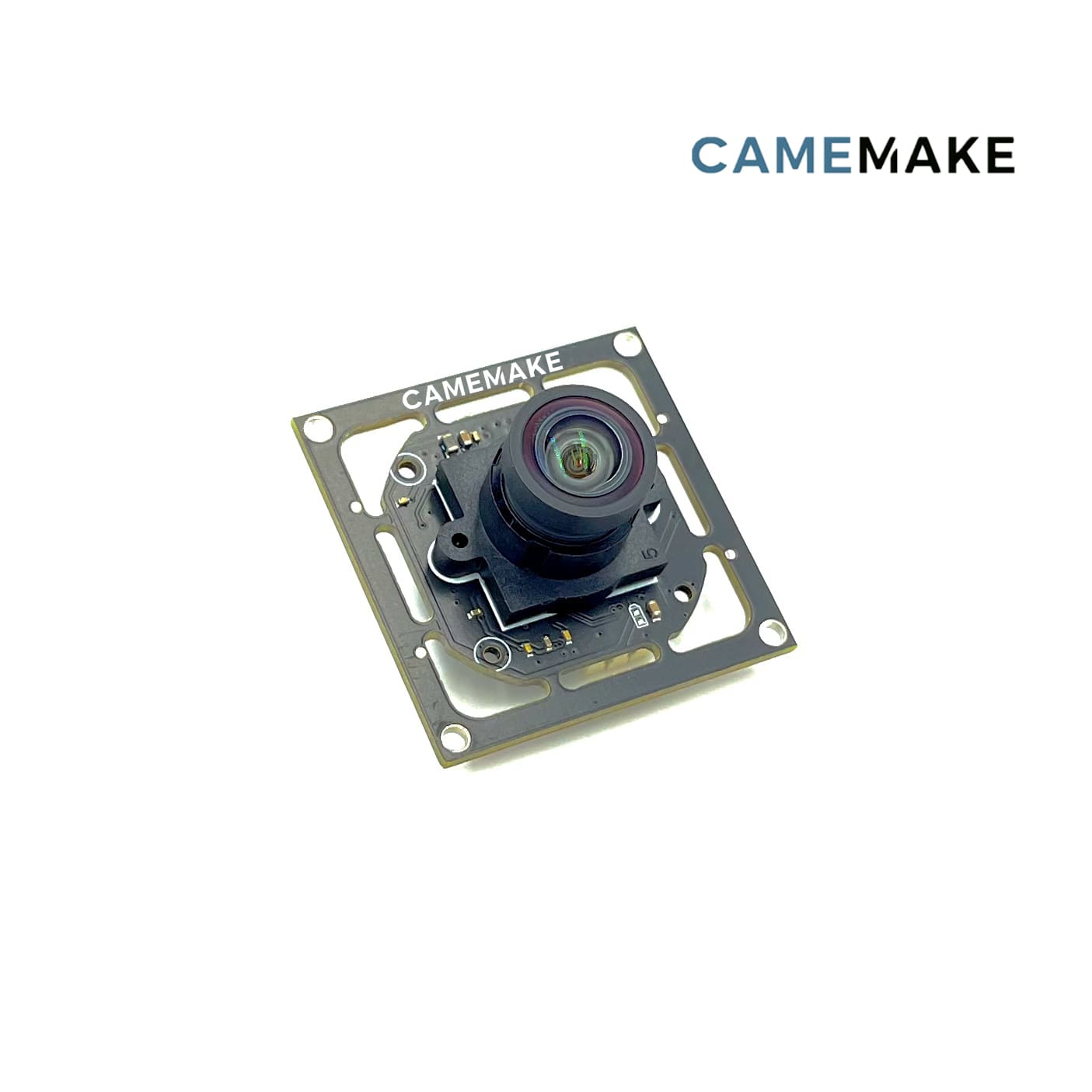

The CM_USB2_09 is a highly versatile Full HD USB camera module that combines the advanced Omnivision OV2735 sensor with a wide-angle lens to deliver exceptional 1080p video quality. This compact imaging solution is specifically engineered for integration into modern digital displays, interactive kiosks, IoT devices, and smart appliances where space constraints and visual performance are critical factors.
With its expansive 92-degree diagonal field of view and optimized optical system, the CM_USB2_09 captures broad scenes with minimal distortion, making it ideal for applications requiring comprehensive coverage in confined spaces. The module's plug-and-play USB-UVC compatibility ensures seamless operation across diverse platforms without the need for additional drivers or complex configuration.
Key Features
- Full HD 1080p resolution delivers crisp, detailed video capture
- Wide-angle lens with 92° DFOV provides extensive scene coverage
- Omnivision OV2735 sensor ensures excellent low-light performance
- Compact 38×38mm form factor enables integration into space-constrained designs
- M12×0.5 lens mount offers flexibility for lens customization
- Minimal distortion (≤1.0%) maintains accurate image geometry
- USB-UVC compliance guarantees broad platform compatibility
- Dual codec support (YUY2/MJPEG) accommodates various bandwidth requirements
Technical Specifications
Sensor Information
Resolution Performance
Optical Characteristics
Physical Properties
Detailed Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Sensor Brand | Omnivision | Leading manufacturer of high-quality imaging sensors |
| Sensor Model | OV2735 | High-performance Full HD sensor |
| Sensor Size | 1/2.7" | Optimized balance of size and performance |
| Sensor Pixel Size | 2.9 µm × 2.9 µm | Large pixels for enhanced light sensitivity |
| Sensor Resolution | 1920 × 1080 | Full HD resolution for crisp video capture |
| Shutter Type | Rolling | Electronic rolling shutter |
| ISP Support | No | Image processing handled by host system |
| Microphone Support | No | Video-only capture |
| Auto Focus | No | Fixed focus lens system |
| Lens Type | Wide | Wide-angle lens for expansive coverage |
| Field of View | DFOV 92°, HFOV 82°, VFOV 52° | Extensive coverage ideal for confined spaces |
| Lens Mount | M12 × 0.5 | Standard industrial lens mount |
| Distortion | ≤ 1.0 % | Minimal distortion for accurate imaging |

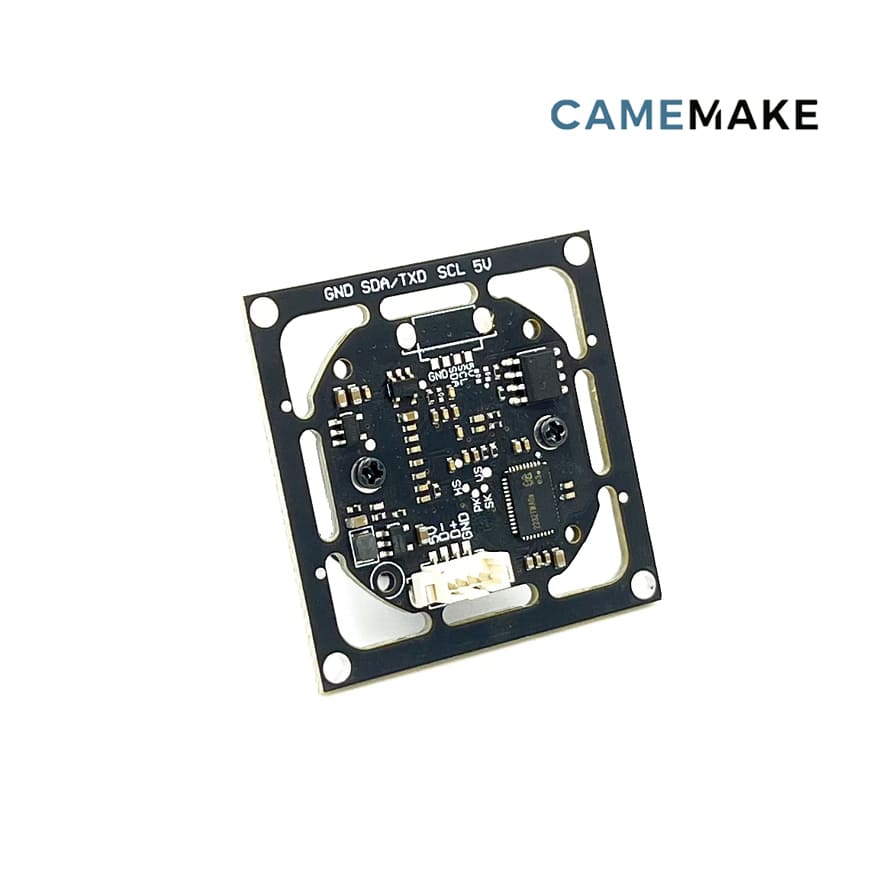

| PCB Size | 38 × 38 mm | Compact form factor for easy integration |
| Connection Type | USB-UVC | Universal Video Class compliant |
| Codec Support | YUY2 / MJPEG | Flexible output formats for different applications |
Applications
The CM_USB2_09 camera module is designed for modern interactive and connected devices where reliable Full HD video capture in compact form factors is essential. Its versatile capabilities make it suitable for a wide range of commercial and consumer applications.
Displays
Integration into digital signage, interactive displays, and video walls for video conferencing, audience analytics, and interactive content. The wide-angle lens ensures comprehensive coverage even when mounted close to the display surface.
Kiosks
Self-service terminals, information kiosks, and retail point-of-sale systems requiring reliable video capture for customer interaction, authentication, and transaction verification in compact enclosures.
IoT Devices
Smart home devices, security cameras, and connected appliances that benefit from compact form factor and plug-and-play operation. Ideal for space-constrained IoT applications requiring visual intelligence.
Smart Appliances
Integration into modern home appliances such as smart refrigerators, ovens, and home assistants for user recognition, gesture control, and remote monitoring capabilities.
Education Tech
Distance learning systems, classroom recording equipment, and educational tablets where reliable video capture enhances the learning experience without requiring complex setup.
Video Conferencing
Compact video solutions for personal and small group conferencing systems. The wide-angle lens accommodates multiple participants while maintaining high-quality Full HD video.
Ordering Information
SKU: CM_USB2_09
Vendor: Camemake Technologies
Lead Time: Typically 2-3 weeks for standard orders
Minimum Order: 1 unit (evaluation samples available)
Customization: Lens options, housing designs, and cable lengths available for volume orders
Support: Comprehensive technical documentation, integration guides, and developer support
Package Contents
Note: USB cables, mounting brackets, and privacy accessories are available separately. Please consult our accessories catalog for compatible options designed for display and kiosk integration.
Technical Support
Camemake provides extensive technical support for the CM_USB2_09 Full HD camera module, including detailed integration guides, API documentation, and sample code for various operating systems and development environments. Our engineering team offers consultation services for custom integration projects.
For developers and integrators, we provide a comprehensive SDK that supports Windows, Linux, macOS, and Android platforms, with examples in multiple programming languages. Documentation includes mechanical drawings, electrical specifications, and optical performance characteristics to facilitate seamless integration into your products.
