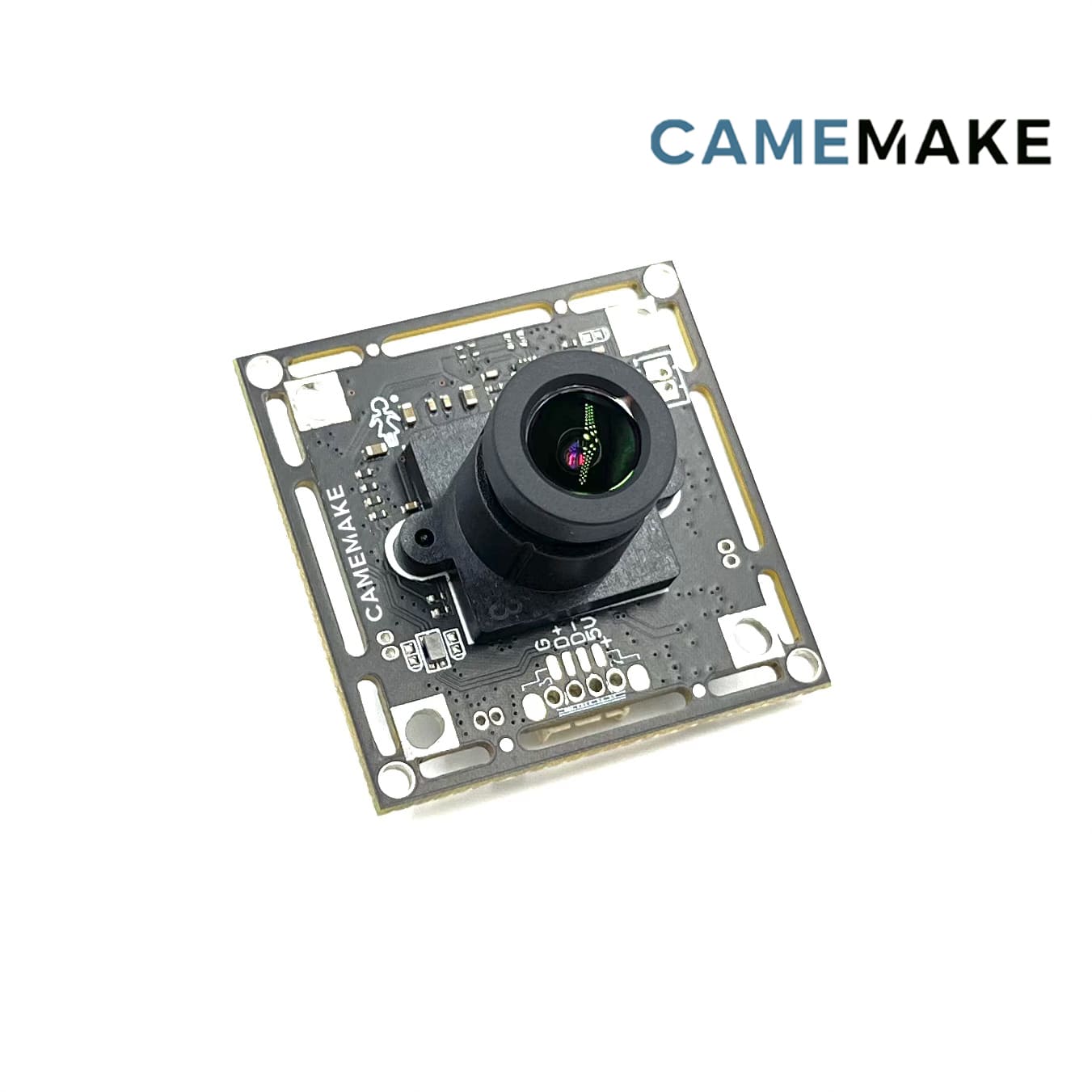

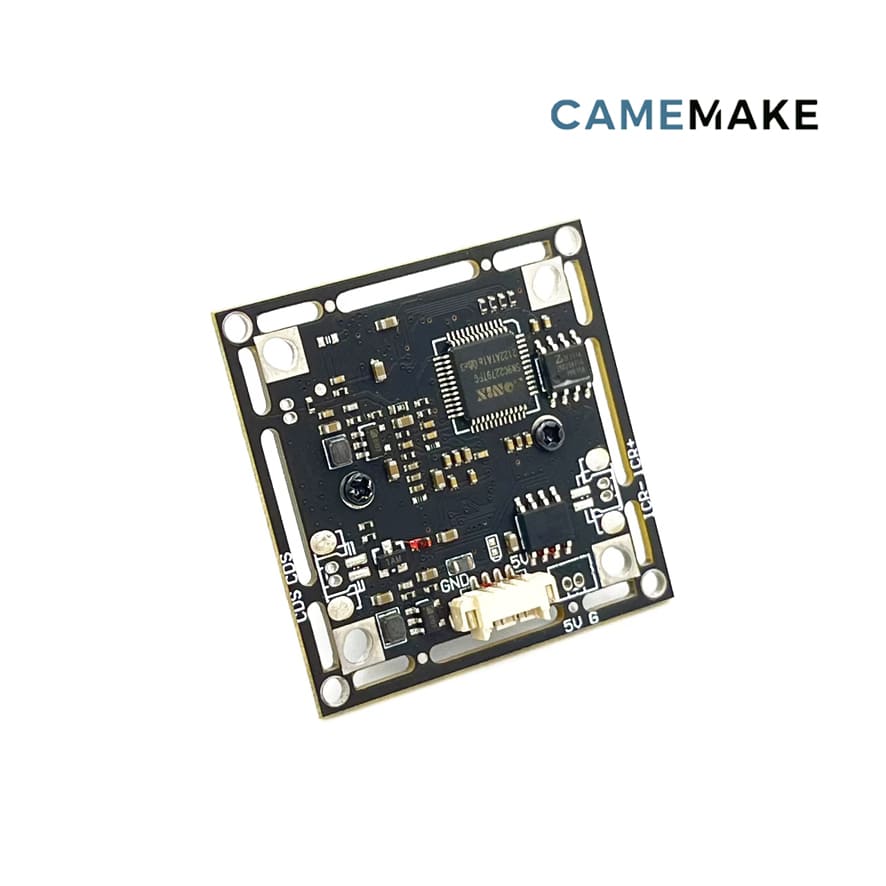

Standard USB Camera with Galaxycore GC2053 Sensor
- PCB Dimensions: 38 mm × 38 mm
- Lens Mount: M12 × 0.5
- Lens Distortion: ≤ 1.0 %
- Field of View: DFOV 86°, HFOV 77°, VFOV 49°
Description
Reviews
Product Overview
The CM_USB2_13 is a versatile and reliable USB camera module featuring the high-performance Galaxycore GC2053 sensor combined with an advanced SONIX ISP. This standard HD imaging solution delivers robust 1080p video quality with accurate color reproduction and consistent performance, making it suitable for a wide range of applications where reliability and image quality are paramount.
Engineered for seamless integration into various systems, the CM_USB2_13 provides excellent visual performance for automation equipment, educational tools, and embedded display applications. The module's balanced optical characteristics and industrial-grade construction ensure dependable operation in diverse environments, from classroom settings to industrial automation scenarios.
Key Features
- Full HD 1080p resolution with Galaxycore GC2053 sensor for reliable imaging
- Integrated SONIX ISP ensures advanced image processing and accurate color reproduction
- Balanced 86° field of view provides comprehensive coverage without excessive distortion
- Microphone support enables synchronized audio-video capture for multimedia applications
- Standard 38×38mm form factor for easy integration into existing systems
- M12×0.5 industrial lens mount for secure and reliable optical assembly
- Minimal lens distortion (≤1.0%) ensures accurate image representation
- USB-UVC compliance guarantees broad platform compatibility
Technical Specifications
Sensor Information
Resolution Performance
Optical Characteristics
Physical Properties
Detailed Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Sensor Brand | Galaxycore | Leading manufacturer of high-performance imaging sensors |
| Sensor Model | GC2053 | Advanced Full HD sensor with integrated processing |
| Sensor Size | 1/2.9" | Optimized for high-quality imaging in standard form factors |
| Sensor Pixel Size | 2.8 µm × 2.8 µm | Large pixels for enhanced sensitivity and color accuracy |
| Sensor Resolution | 1920 × 1080 | Full HD resolution for detailed image capture |
| Shutter Type | Rolling | Electronic rolling shutter |
| ISP Support | Yes | SONIX Image Signal Processor integrated |
| Microphone Support | Yes | Audio capture capability for multimedia applications |
| Auto Focus | No | Fixed focus lens system for consistent performance |
| Lens Type | Normal | Standard perspective lens for natural imaging |
| Field of View | DFOV 86°, HFOV 77°, VFOV 49° | Balanced coverage for versatile applications |
| Lens Mount | M12 × 0.5 | Industrial-standard lens mount for reliability |
| Distortion | ≤ 1.0 % | Minimal distortion for accurate image representation |
| PCB Size | 38 × 38 mm | Standard industrial form factor |
| Connection Type | USB-UVC | Universal Video Class compliant |
| Codec Support | YUY2 / MJPEG | Dual codec support for flexible implementation |
Applications
The CM_USB2_13 camera module is designed as a versatile imaging solution suitable for a broad range of applications where reliable Full HD video quality and easy integration are essential. Its balanced performance characteristics make it ideal for both commercial and industrial implementations.
Automation
Industrial automation systems, robotic guidance, and quality control applications requiring consistent visual feedback. The reliable performance ensures accurate imaging in manufacturing and process control environments.
Education
Classroom technology, distance learning systems, and educational tools where reliable video capture enhances the learning experience. The microphone support enables interactive audio-video applications.
Embedded Displays
Integration into digital signage, information displays, and interactive kiosks where consistent video quality and reliable operation are essential for public and commercial use.
Video Conferencing
Business communication systems, telepresence solutions, and collaboration tools requiring reliable Full HD video with accurate color reproduction for professional applications.
Medical Imaging
Non-diagnostic medical applications, telemedicine equipment, and educational medical tools where clear visual documentation is required for training and consultation purposes.
Smart Home Devices
Home automation systems, security cameras, and smart appliances requiring reliable video capture with easy integration and consistent performance in residential environments.
Ordering Information
SKU: CM_USB2_13
Vendor: Camemake Technologies
Lead Time: Typically 2-3 weeks for standard orders
Minimum Order: 1 unit (evaluation samples available)
Customization: Lens options, cable configurations, and housing designs available for volume OEM orders
Support: Comprehensive technical documentation, integration guides, and engineering support for diverse applications
Package Contents
Note: Standard mounting brackets, various cable lengths, and accessory kits are available separately. Please consult our general applications catalog for compatible options designed for versatile integration scenarios.
Technical Support
Camemake provides comprehensive technical support for the CM_USB2_13 versatile camera module, including detailed integration guides, API documentation, and sample applications tailored for various implementation scenarios. Our engineering team offers consultation services for automation, education, and display integration projects.
For developers and system integrators, we provide a robust SDK supporting Windows, Linux, macOS, and embedded platforms, with examples in multiple programming languages. Documentation includes performance characteristics, compatibility testing results, and implementation guidelines for reliable operation across diverse applications.
