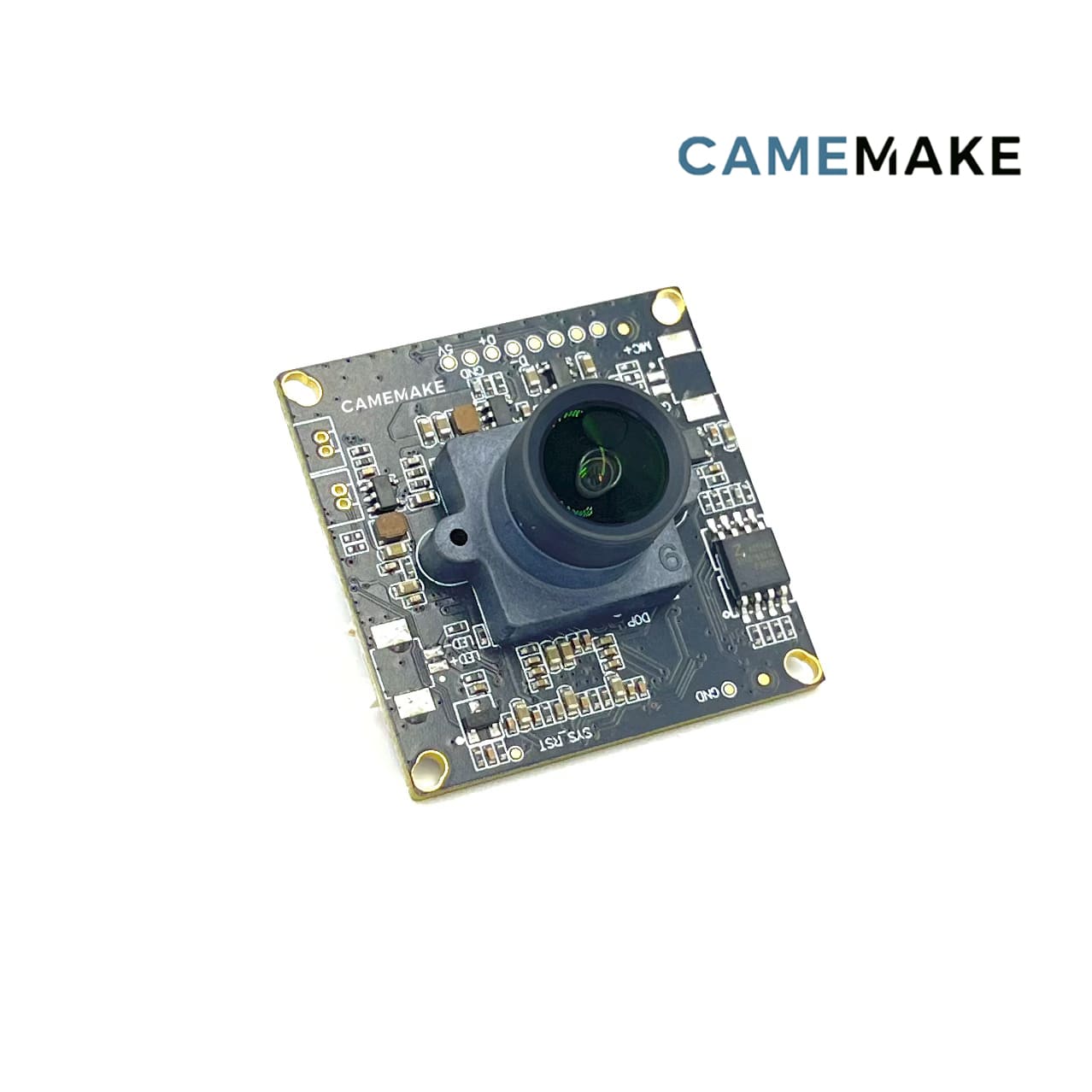

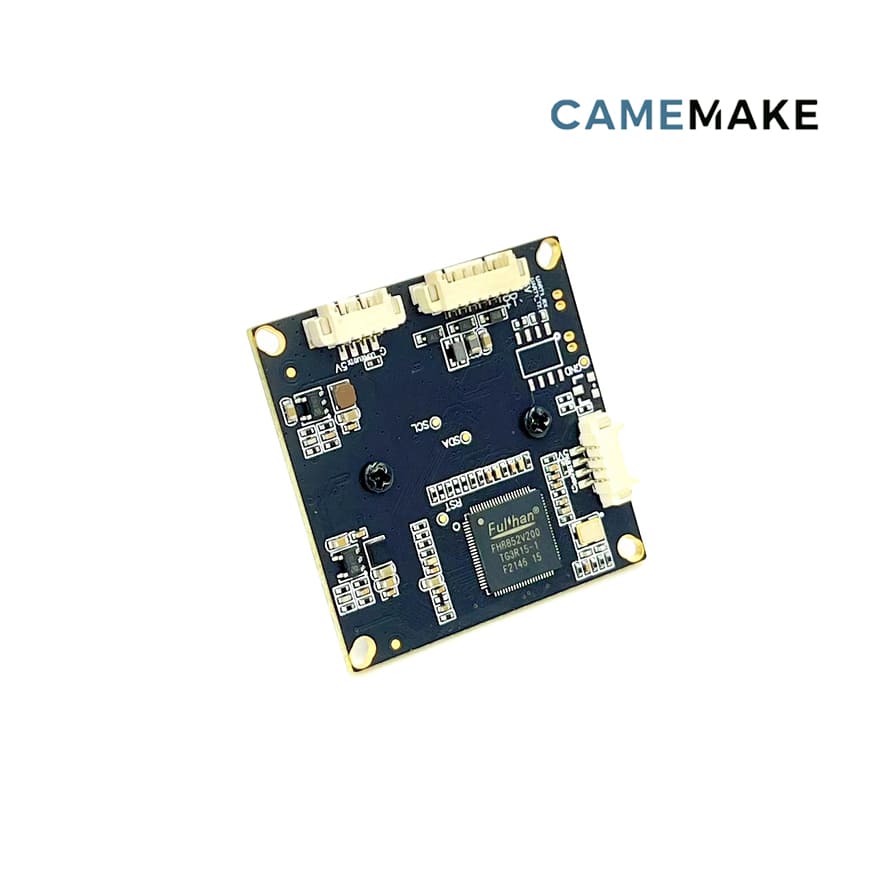

Rugged USB Camera with Galaxycore GC2093 Sensor
- PCB Dimensions: 38 mm × 38 mm
- Lens Mount: M12 × 0.5
- Lens Distortion: ≤ 1.0 %
- Field of View: DFOV 86°, HFOV 77°, VFOV 49°
Description
Reviews
Product Overview
The CM_USB2_14 is a rugged USB camera module engineered for demanding security and surveillance applications, featuring the reliable Galaxycore GC2093 sensor. This industrial-grade imaging solution delivers consistent 1080p video quality with enhanced durability and long-life components, making it ideal for continuous operation in challenging environments where reliability is critical.
Specifically designed for surveillance systems, intercoms, and perimeter monitoring applications, the CM_USB2_14 incorporates robust construction and optimized real-time encoding capabilities with comprehensive MJPEG/H.264 support. The module's compact design facilitates easy integration into various security enclosures while maintaining professional-grade imaging performance for 24/7 operation.
Key Features
- Rugged construction designed for continuous 24/7 security operation
- Full HD 1080p resolution with Galaxycore GC2093 sensor for reliable surveillance imaging
- Triple codec support (YUY2/MJPEG/H.264) optimized for real-time security encoding
- Long-life components rated for extended operation in demanding environments
- Compact 38×38mm form factor with robust M12×0.5 industrial lens mount
- Minimal lens distortion (≤1.0%) ensures accurate monitoring and identification
- Optimized for surveillance, intercom, and perimeter monitoring applications
- USB-UVC compliance ensures compatibility with security recording systems
Technical Specifications
Sensor Information
Resolution Performance
Optical Characteristics
Physical Properties
Detailed Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Sensor Brand | Galaxycore | Leading manufacturer of reliable imaging sensors |
| Sensor Model | GC2093 | Rugged Full HD sensor optimized for surveillance |
| Sensor Size | 1/2.9" | Optimized for surveillance applications |
| Sensor Pixel Size | 2.8 µm × 2.8 µm | Large pixels for enhanced low-light performance |
| Sensor Resolution | 1920 × 1080 | Full HD resolution for detailed surveillance imaging |
| Shutter Type | Rolling | Electronic rolling shutter |
| ISP Support | No | Image processing handled by security system |
| Microphone Support | No | Video-only capture for surveillance applications |
| Auto Focus | No | Fixed focus for consistent surveillance performance |
| Lens Type | Normal | Standard perspective for security monitoring |
| Field of View | DFOV 86°, HFOV 77°, VFOV 49° | Comprehensive coverage for security applications |
| Lens Mount | M12 × 0.5 | Industrial-standard rugged lens mount |
| Distortion | ≤ 1.0 % | Minimal distortion for accurate monitoring |
| PCB Size | 38 × 38 mm | Rugged industrial form factor |
| Connection Type | USB-UVC | Universal Video Class compliant |
| Codec Support | YUY2 / MJPEG / H.264 | Triple codec support for flexible security system integration |
Applications
The CM_USB2_14 rugged camera module is specifically engineered for security and surveillance applications where reliability, durability, and continuous operation are essential. Its robust design and optimized performance make it suitable for various security implementations.
Surveillance
24/7 security monitoring systems, CCTV installations, and property surveillance requiring reliable continuous operation. The rugged construction ensures performance in various environmental conditions.
Intercoms
Video intercom systems for residential, commercial, and industrial access control. The compact design allows integration into intercom panels while maintaining high-quality video communication.
Perimeter Monitoring
Boundary security systems, fence line monitoring, and outdoor perimeter protection requiring weather-resistant performance and reliable detection capabilities.
Security Devices
Access control systems, alarm verification cameras, and security appliances where dependable imaging is critical for threat assessment and incident documentation.
Commercial Security
Retail security, office building monitoring, and commercial property protection systems requiring reliable video capture for loss prevention and safety compliance.
Residential Security
Home security systems, smart doorbells, and residential monitoring applications where compact size and reliable performance are essential for family protection.
Ordering Information
SKU: CM_USB2_14
Vendor: Camemake Technologies
Lead Time: Typically 3-4 weeks for standard orders
Minimum Order: 1 unit (security evaluation kits available)
Customization: Weather-resistant housings, IR illumination options, and extended temperature versions available
Support: Comprehensive security integration documentation, compliance guidelines, and engineering support
Package Contents
Note: Weatherproof enclosures, security mounting brackets, and extended cable assemblies are available separately. Please consult our security solutions catalog for accessories designed for surveillance applications.
Technical Support
Camemake provides specialized technical support for the CM_USB2_14 rugged security camera module, including detailed integration guides for surveillance systems, compliance documentation, and security implementation best practices. Our engineering team offers consultation services for security system integration and rugged environment applications.
For security system integrators and developers, we provide a comprehensive SDK with security-specific features, supporting Windows, Linux, and embedded security platforms. Documentation includes ruggedness testing results, environmental performance data, and implementation guidelines for reliable operation in security and surveillance applications.
