IR Global Shutter USB Camera with Omnivision OV9281 Sensor
- PCB Dimensions: 38 mm × 38 mm
- Lens Mount: M8 × 0.35
- Lens Distortion: ≤ 0.60 %
- Field of View: DFOV 45°, HFOV 28°, VFOV 28°
Description
Reviews
Product Overview

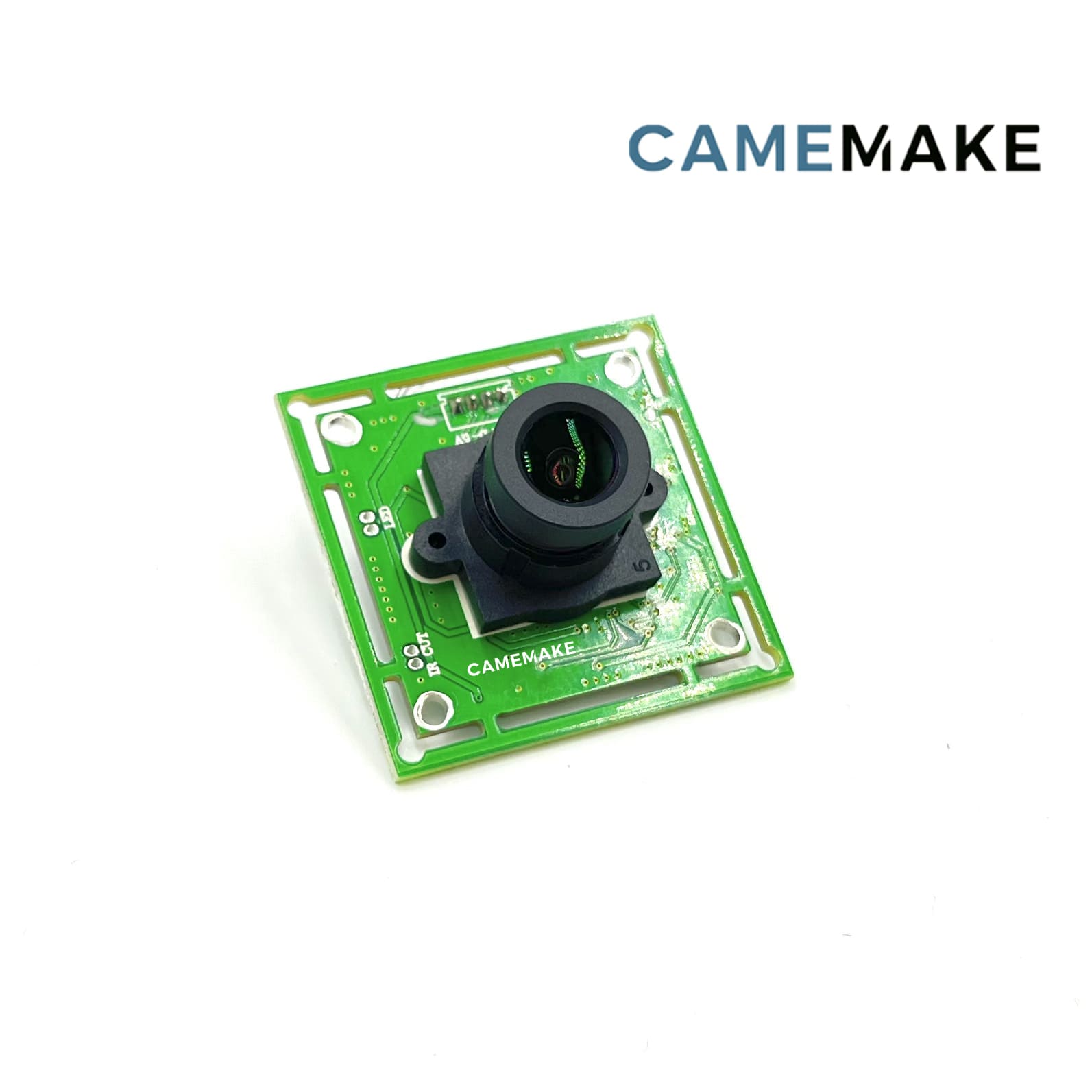

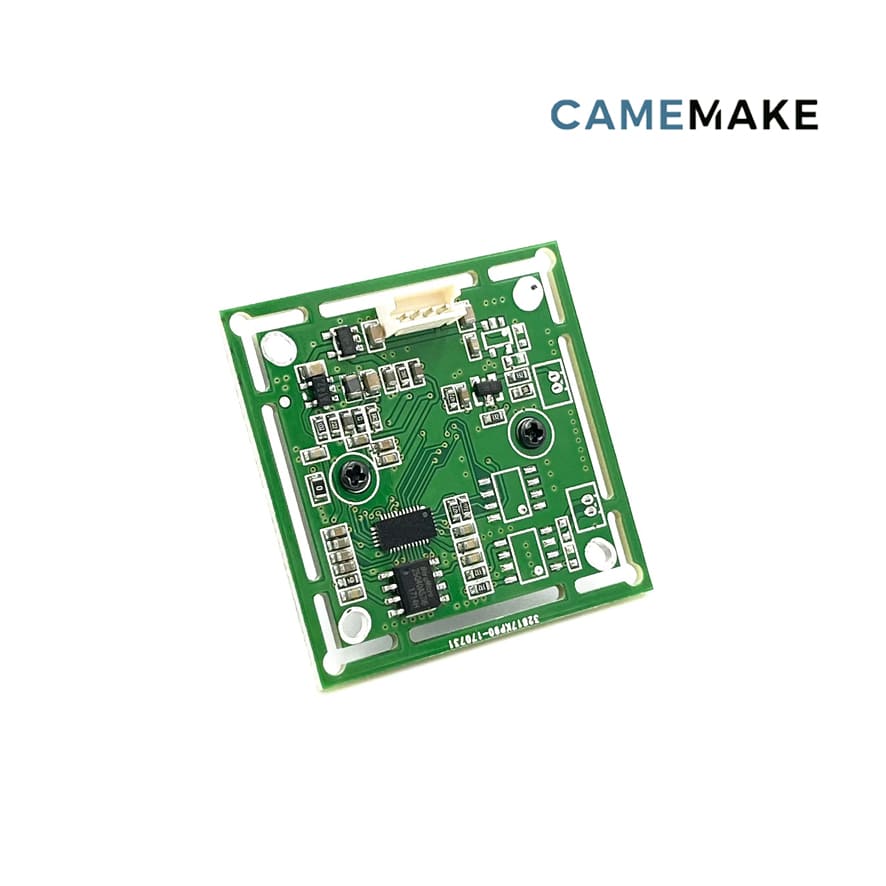

The CM_USB2_08 is a sophisticated USB camera module featuring the Omnivision OV9281 global shutter sensor, specifically engineered for precision infrared imaging applications. This advanced module delivers exceptional performance in challenging environments where accurate motion capture and IR sensitivity are critical requirements.
Designed for integration into specialized systems, the CM_USB2_08 combines global shutter technology with IR optimization to eliminate motion artifacts and provide clear, distortion-free imaging even in low-light conditions. Its compact form factor and robust construction make it ideal for embedded vision applications across various industries.
Key Features
- Global shutter technology eliminates motion distortion for capturing fast-moving objects
- Omnivision OV9281 sensor provides excellent IR sensitivity for low-light applications
- High-precision 1280 × 800 resolution ensures detailed image capture
- Integrated ISP with microphone support for audio-visual synchronization
- VCM auto focus system maintains sharp focus in varying conditions
- IR-optimized monochrome lens delivers superior performance in infrared spectrum
- Minimal lens distortion (≤0.60%) ensures accurate spatial representation
- USB-UVC compliance enables plug-and-play operation across multiple platforms
Technical Specifications
Sensor Information
Resolution Performance
Optical Characteristics
Physical Properties
Detailed Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Sensor Brand | Omnivision | Leading manufacturer of advanced imaging sensors |
| Sensor Model | OV9281 | Global shutter sensor with IR sensitivity |
| Sensor Size | 1/4" | Compact form factor with large pixels |
| Sensor Pixel Size | 3.0 µm × 3.0 µm | Large pixels for enhanced light capture |
| Sensor Resolution | 1280 × 800 | Ideal balance of resolution and frame rate |
| Shutter Type | Global | Eliminates motion distortion for moving objects |
| ISP Support | Yes | Integrated Image Signal Processor |
| Microphone Support | Yes | Audio capture capability |
| Auto Focus | Yes (VCM) | Voice Coil Motor auto focus system |
| Lens Type | IR-monochrome | Optimized for infrared imaging |
| Field of View | DFOV 45°, HFOV 28°, VFOV 28° | Narrow field for focused applications |
| Lens Mount | M8 × 0.35 | Standard thread mount for compatibility |
| Distortion | ≤ 0.60 % | Exceptionally low distortion for precision imaging |
| PCB Size | 38 × 38 mm | Compact form factor for easy integration |
| Connection Type | USB-UVC | Universal Video Class compliant |
| Codec Support | YUY2 / MJPEG | Flexible output formats for different applications |
Applications
The CM_USB2_08 camera module is specifically engineered for specialized imaging applications that require global shutter technology and IR sensitivity. Its unique capabilities make it ideal for advanced vision systems across multiple industries.
Robotics & Automation
Precision machine vision for robotic guidance, object recognition, and automated quality inspection. The global shutter ensures clear imaging of fast-moving components on production lines without motion blur.
Biometrics
Facial recognition, iris scanning, and other identity verification systems. The IR sensitivity enables operation in various lighting conditions while maintaining high accuracy for security applications.
Eye Tracking
Advanced gaze tracking for research, accessibility devices, and human-computer interaction systems. The global shutter captures precise eye movements without distortion for accurate tracking analysis.
Motion Detection
High-speed motion analysis and gesture recognition applications. The combination of global shutter and IR optimization allows for accurate tracking in various lighting environments.
Night Applications
Surveillance, security, and monitoring systems that operate in low-light or complete darkness. The IR sensitivity enables clear imaging when paired with IR illumination sources.
Industrial Inspection
Quality control and defect detection in manufacturing environments. The global shutter technology captures sharp images of moving production lines without motion artifacts.
Ordering Information
SKU: CM_USB2_08
Vendor: Camemake Technologies
Lead Time: Typically 3-4 weeks for standard orders
Minimum Order: 1 unit (evaluation kits available)
Customization: Lens options, filter modifications, and housing designs available for volume orders
Support: Comprehensive technical documentation, SDK access, and engineering support for integration projects
Package Contents
Note: IR illumination sources, USB cables, mounting brackets, and protective filters are available separately. Please consult our accessories catalog for compatible options designed specifically for IR imaging applications.
Technical Support
Camemake provides extensive technical support for the CM_USB2_08 global shutter camera module, including detailed integration guides, API documentation, and sample code for various development environments. Our engineering team offers specialized consultation for IR imaging applications and global shutter implementation.
For developers, we provide a comprehensive SDK that supports Windows, Linux, and embedded platforms, with examples in multiple programming languages. Documentation includes detailed characteristics of the global shutter operation, IR performance metrics, and synchronization capabilities for multi-camera setups.
