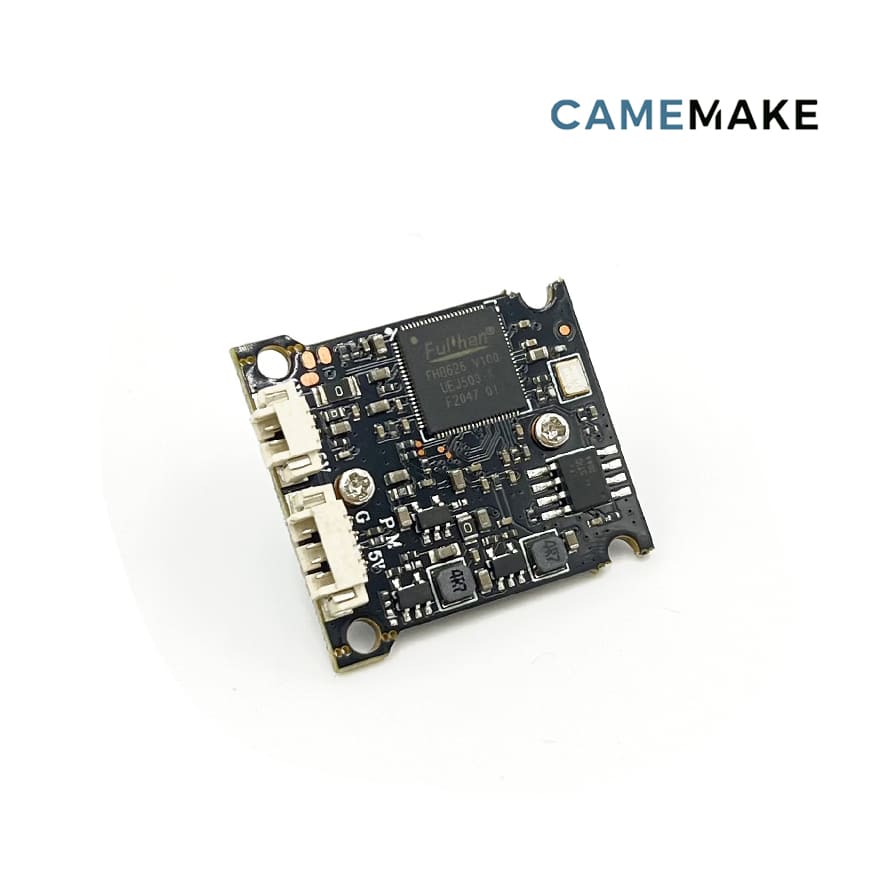

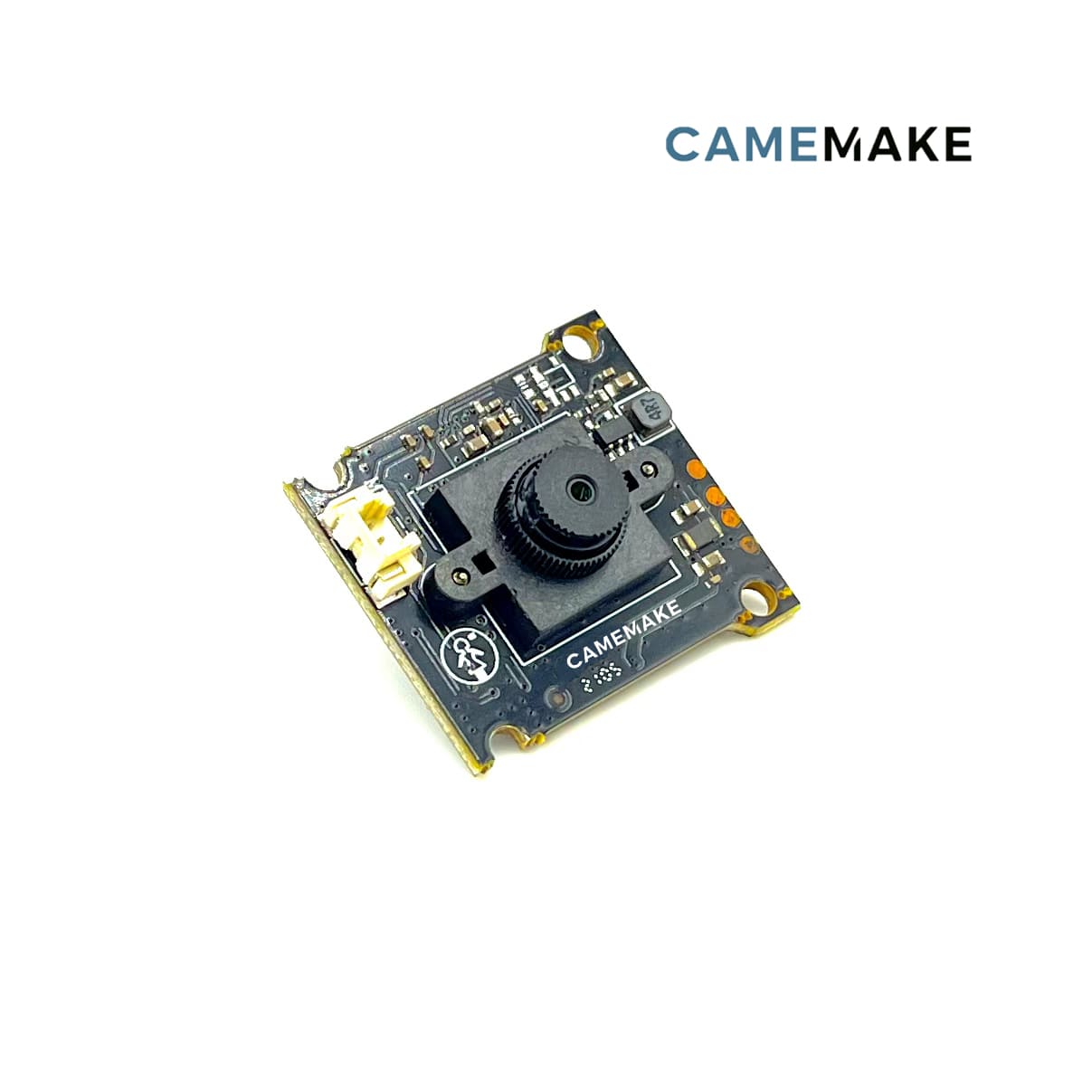

Compact USB Camera with F23 Sensor
- PCB Dimensions: 30 mm × 25 mm
- Lens Mount: M8 × 0.35
- Lens Distortion: ≤ 0.60 %
- Field of View: DFOV 70°, HFOV 63°, VFOV 38.5°
Description
Reviews
Product Overview
The CM_USB2_10 is an ultra-compact USB camera module featuring the advanced SOI F23 sensor, specifically engineered for seamless integration into modern consumer electronics. This high-performance imaging solution delivers crisp 1080p video quality with exceptional low-light capabilities, making it ideal for space-constrained applications where reliability and image quality are paramount.
Designed with a minimal footprint of just 30×25mm, the CM_USB2_10 offers manufacturers unprecedented flexibility for embedding high-quality video capture into smart doorbells, tablets, point-of-sale systems, and other compact consumer devices. The module's USB-UVC compliance ensures global compatibility across diverse platforms without requiring additional drivers or complex configuration.
Key Features
- Ultra-compact 30×25mm form factor for space-constrained integration
- Full HD 1080p resolution delivers sharp, detailed video capture
- SOI F23 sensor provides excellent low-light performance and image quality
- Triple codec support (YUY2/MJPEG/H.264) offers maximum flexibility
- Minimal lens distortion (≤0.60%) ensures accurate image representation
- Standard 70° field of view ideal for consumer applications
- M8×0.35 lens mount enables easy maintenance and replacement
- USB-UVC plug-and-play operation across multiple platforms
Technical Specifications
Sensor Information
Resolution Performance
Optical Characteristics
Physical Properties
Detailed Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Sensor Brand | SOI | Specialized manufacturer of high-sensitivity sensors |
| Sensor Model | F23 | Advanced Full HD sensor with enhanced low-light performance |
| Sensor Size | 1/2.9" | Optimized for compact form factors |
| Sensor Pixel Size | 2.8 µm × 2.8 µm | Large pixels for superior light gathering capability |
| Sensor Resolution | 1920 × 1080 | Full HD resolution for high-quality video capture |
| Shutter Type | Rolling | Electronic rolling shutter |
| ISP Support | No | Image processing handled by host system |
| Microphone Support | No | Video-only capture functionality |
| Auto Focus | No | Fixed focus lens system for reliability |
| Lens Type | Normal | Standard perspective lens for natural imaging |
| Field of View | DFOV 70°, HFOV 63°, VFOV 38.5° | Balanced field of view for consumer applications |
| Lens Mount | M8 × 0.35 | Standard thread mount for compatibility |
| Distortion | ≤ 0.60 % | Exceptionally low distortion for accurate imaging |
| PCB Size | 30 × 25 mm | Ultra-compact form factor for space-constrained designs |
| Connection Type | USB-UVC | Universal Video Class compliant |
| Codec Support | YUY2 / MJPEG / H.264 | Comprehensive codec support including H.264 compression |
Applications
The CM_USB2_10 camera module is specifically designed for modern consumer electronics where space optimization, reliability, and high-quality imaging converge. Its ultra-compact design and robust performance make it ideal for a wide range of smart devices and commercial applications.
Smart Doorbells
Video doorbell systems requiring compact, high-quality cameras for clear visitor identification and security monitoring. The excellent low-light performance ensures reliable operation day and night.
Tablets
Integration into tablets and mobile devices for video conferencing, photography, and augmented reality applications. The minimal footprint allows for slim device profiles without compromising camera quality.
Point-of-Sale Terminals
Modern POS systems requiring compact cameras for customer identification, transaction verification, and video documentation. The reliable performance ensures continuous operation in retail environments.
Laptops & Notebooks
Thin and light computing devices where space constraints demand ultra-compact camera solutions without sacrificing Full HD video quality for conferencing and content creation.
Smart Home Devices
Integration into various smart home products including security cameras, smart displays, and home automation systems where compact size and reliable performance are essential.
Mobile Accessories
External camera accessories for smartphones and other mobile devices, providing enhanced imaging capabilities while maintaining portability and ease of use.
Ordering Information
SKU: CM_USB2_10
Vendor: Camemake Technologies
Lead Time: Typically 2-3 weeks for standard orders
Minimum Order: 1 unit (evaluation samples available)
Customization: Cable lengths, connector types, and housing designs available for volume OEM orders
Support: Comprehensive technical documentation, integration guides, and engineering support for consumer electronics integration
Package Contents
Note: Custom cable assemblies, mounting brackets, and privacy accessories are available separately. Please consult our accessories catalog for solutions tailored to consumer electronics integration.
Technical Support
Camemake provides extensive technical support for the CM_USB2_10 ultra-compact camera module, including detailed integration guides, mechanical drawings, and electrical specifications tailored for consumer electronics manufacturers. Our engineering team offers specialized consultation for space-constrained designs and high-volume production requirements.
For developers and integrators, we provide a comprehensive SDK supporting Windows, Linux, Android, and embedded platforms, with sample code in multiple programming languages. Documentation includes detailed performance characteristics, compatibility testing results, and design guidelines for optimal integration into consumer products.
