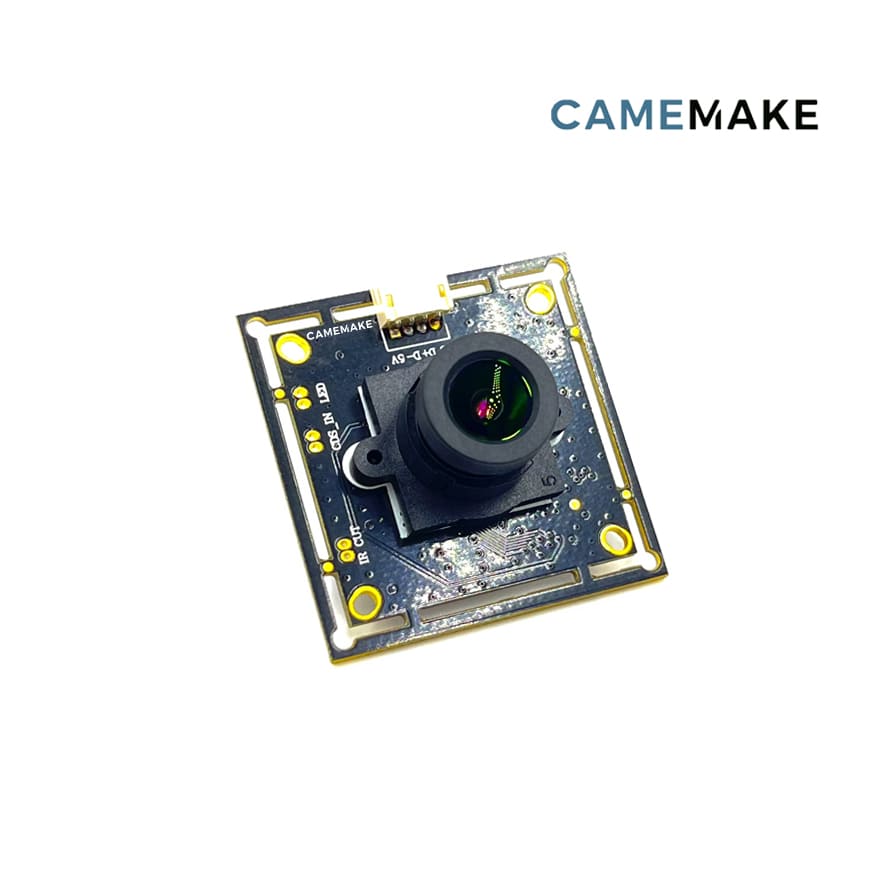

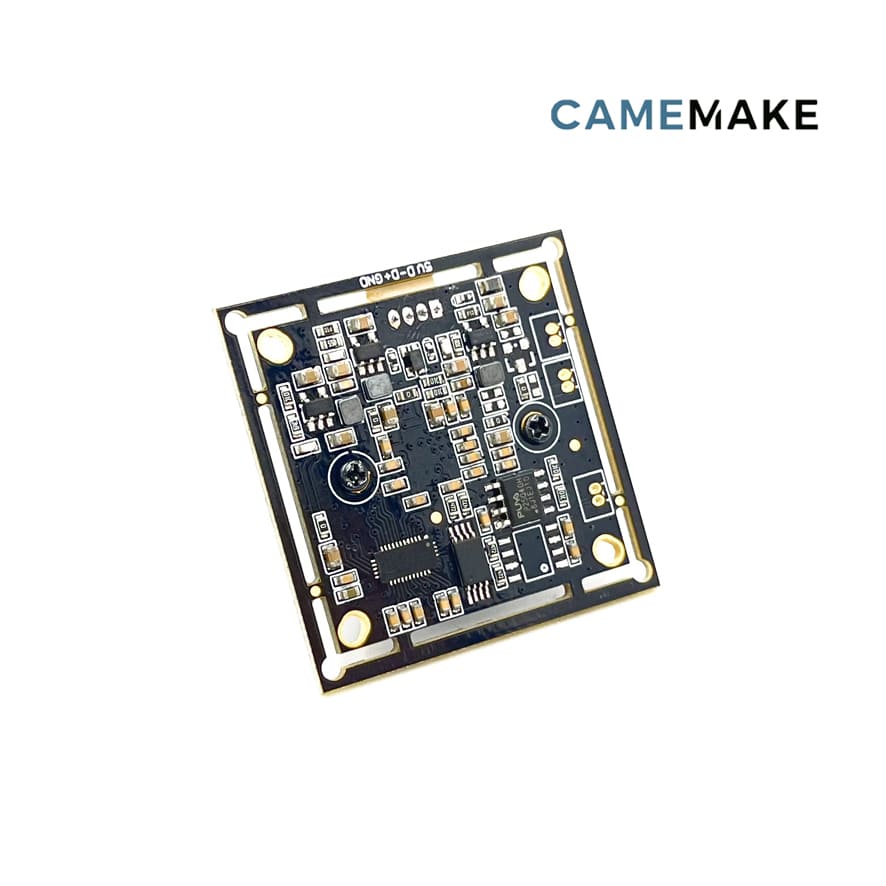

Automotive-Grade USB Camera with Onsemi AR0230 Sensor
- PCB Dimensions: 38 mm × 38 mm
- Lens Mount: M12 × 0.5
- Lens Distortion: ≤ 1.0 %
- Field of View: DFOV 92°, HFOV 82°, VFOV 52°
Description
Reviews
Product Overview
The CM_USB2_15 is an automotive-grade USB camera module featuring the high-performance Onsemi AR0230 sensor, specifically engineered for demanding automotive applications. This robust imaging solution delivers stable HD video capture with exceptional wide dynamic range, making it ideal for driver assistance systems, smart dashboards, and automotive vision applications where reliability and performance are critical.
Designed to meet the rigorous requirements of automotive environments, the CM_USB2_15 offers plug-and-play integration with M12 lens options and USB-UVC compatibility. The module's automotive-grade components ensure reliable operation across varying temperature conditions and vibration scenarios, providing consistent performance for safety-critical automotive applications.
Key Features
- Automotive-grade construction meeting industry standards for reliability
- Onsemi AR0230 sensor with exceptional wide dynamic range (WDR)
- Full HD 1080p resolution optimized for driver assistance applications
- Large 3.0µm pixels for superior low-light performance
- Wide 92° field of view for comprehensive scene coverage
- M12×0.5 automotive-grade lens mount with vibration resistance
- Extended temperature range operation for automotive environments
- USB-UVC compliance ensures seamless integration with automotive systems
Technical Specifications
Sensor Information
Resolution Performance
Optical Characteristics
Physical Properties
Detailed Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Sensor Brand | Onsemi | Leading manufacturer of automotive-grade imaging sensors |
| Sensor Model | AR0230 | Automotive-grade sensor with wide dynamic range |
| Sensor Size | 1/2.7" | Optimized for automotive vision applications |
| Sensor Pixel Size | 3.0 µm × 3.0 µm | Large pixels for superior dynamic range and low-light performance |
| Sensor Resolution | 1920 × 1080 | Full HD resolution for detailed automotive vision |
| Shutter Type | Rolling | Electronic rolling shutter |
| ISP Support | No | Image processing handled by automotive system |
| Microphone Support | No | Video-only capture for vision applications |
| Auto Focus | No | Fixed focus optimized for automotive distances |
| Lens Type | Normal | Wide-angle lens for comprehensive automotive coverage |
| Field of View | DFOV 92°, HFOV 82°, VFOV 52° | Wide coverage ideal for driver assistance applications |
| Lens Mount | M12 × 0.5 | Automotive-grade vibration-resistant mount |
| Distortion | ≤ 1.0 % | Minimal distortion for accurate object detection |
| PCB Size | 38 × 38 mm | Standard automotive form factor |
| Connection Type | USB-UVC | Universal Video Class compliant |
| Codec Support | YUY2 / MJPEG | Dual codec support for automotive system flexibility |
Applications
The CM_USB2_15 automotive-grade camera module is specifically designed for modern vehicle systems where reliability, wide dynamic range, and environmental durability are essential. Its automotive-grade construction makes it ideal for various in-vehicle vision applications.
Driver Assistance Systems
Advanced driver assistance systems (ADAS) including lane departure warning, collision avoidance, and traffic sign recognition. The wide dynamic range ensures performance in challenging lighting conditions.
Smart Dash Systems
Integrated dashboard cameras, driver monitoring systems, and smart display integration for modern vehicle cockpits. The compact design allows seamless integration into dashboard assemblies.
Smart Mirrors
Electronic mirror systems, blind spot monitoring, and rearview camera applications where reliable imaging enhances driver visibility and safety.
Automotive Vision
Surround-view systems, parking assistance, and vehicle perimeter monitoring requiring multiple camera inputs with consistent performance across environmental conditions.
Fleet Management
Commercial vehicle monitoring, driver behavior analysis, and fleet security systems requiring automotive-grade reliability and continuous operation.
Traffic Monitoring
Intelligent transportation systems, traffic flow analysis, and vehicle counting applications where automotive-grade durability ensures long-term reliability.
Ordering Information
SKU: CM_USB2_15
Vendor: Camemake Technologies
Lead Time: Typically 4-6 weeks for automotive-grade orders
Minimum Order: 1 unit (automotive evaluation kits available)
Customization: Automotive-grade certifications, specific temperature ranges, and custom housing designs available
Support: Comprehensive automotive integration documentation, compliance testing data, and engineering support
Package Contents
Note: Automotive-grade cables, vibration-resistant mounts, and environmental sealing kits are available separately. Please consult our automotive solutions catalog for accessories meeting vehicle industry standards.
Technical Support
Camemake provides specialized technical support for the CM_USB2_15 automotive-grade camera module, including detailed integration guides for vehicle systems, automotive compliance documentation, and environmental testing results. Our engineering team offers consultation services for automotive system integration and safety-critical applications.
For automotive system integrators and Tier 1 suppliers, we provide a comprehensive SDK with automotive-specific features, supporting automotive operating systems and embedded platforms. Documentation includes extensive environmental testing data, reliability metrics, and implementation guidelines for automotive vision applications.
