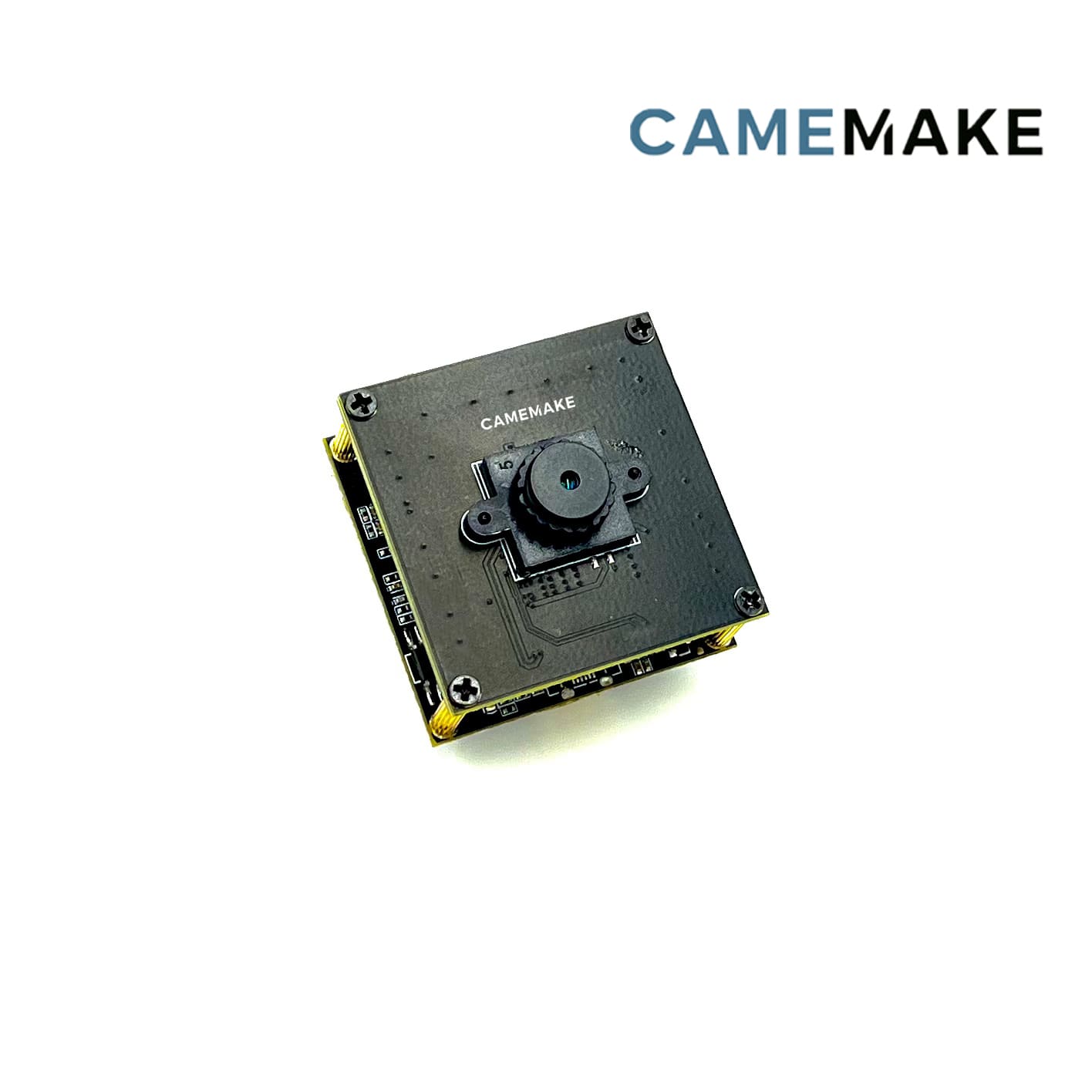

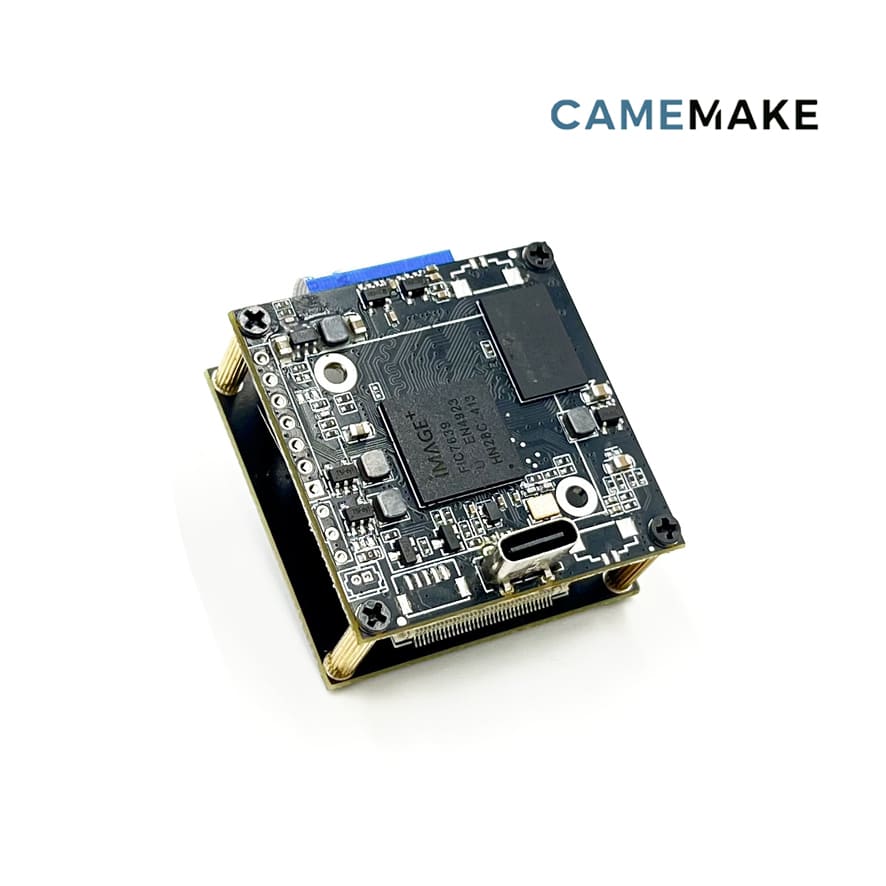

48MP USB Camera Module with Sony IMX586 Sensor
- PCB Dimensions: 38 mm × 38 mm
- Lens Mount: M8 × 0.35
- Distortion: < 1.5 %
- Field of View: DFOV 70°, HFOV 36°, VFOV 36°
Description
Reviews
Product Overview
The CM_USB2_07 represents a significant advancement in USB imaging technology, combining a compact form factor with exceptional 48-megapixel resolution. Built around the industry-leading Sony IMX586 sensor, this module delivers unparalleled image quality with stunning detail and clarity. The plug-and-play USB-UVC compatibility ensures seamless integration with a wide range of systems, from professional workstations to embedded devices.
Engineered for demanding applications where precision and reliability are paramount, the CM_USB2_07 offers consistent performance across varying lighting conditions. Its robust construction and optimized thermal management ensure stable operation even during extended use, making it an ideal solution for both industrial and commercial imaging requirements.
Key Features
- Ultra-high 48MP resolution captures minute details with exceptional clarity
- Sony IMX586 sensor delivers industry-leading image quality and color reproduction
- USB-UVC compliance enables plug-and-play operation without additional drivers
- Compact 38×38mm form factor facilitates integration into space-constrained designs
- Advanced lens system with less than 1.5% distortion ensures accurate image representation
- Wide 70° diagonal field of view provides comprehensive coverage for diverse applications
- Dual codec support (YUY2/MJPEG) offers flexibility for different bandwidth requirements
- Optimized power consumption enables operation from standard USB ports
Technical Specifications
Sensor Information
Resolution Performance
Optical Characteristics
Physical Properties
Detailed Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Sensor Brand | Sony | Industry-leading sensor manufacturer |
| Sensor Model | IMX586 | High-performance 48MP mobile sensor |
| Sensor Size | 1/2" | Optimal balance of size and performance |
| Sensor Pixel Size | 0.8 µm × 0.8 µm | Quad Bayer array with pixel binning capability |
| Sensor Resolution | 8000 × 6000 (48MP) | Exceptional detail capture capability |
| Shutter Type | Rolling | Electronic rolling shutter |
| ISP Support | No | Image processing handled by host system |
| Auto Focus | No (VCM) | Fixed focus lens system |
| Lens Type | Normal | Standard perspective with minimal distortion |
| Field of View | DFOV 70°, HFOV 36°, VFOV 36° | Balanced coverage for most applications |
| Lens Mount | M8 × 0.35 | Standard thread mount for compatibility |
| Distortion | < 1.5 % | Minimal barrel distortion for accurate imaging |
| PCB Size | 38 × 38 mm | Compact form factor for easy integration |
| Connection Type | USB-UVC | Universal Video Class compliant |
| Codec Support | YUY2 / MJPEG | Flexible output formats for different applications |
Applications
The CM_USB2_07 camera module is engineered for precision imaging across diverse industries and applications. Its exceptional resolution and optical performance make it suitable for both commercial and industrial environments where image quality and reliability are critical.
Document Scanning
High-fidelity capture of text and illustrations for archival and digitization projects. The 48MP resolution ensures even the finest details are preserved, making it ideal for historical document preservation and legal document imaging.
Digital Archiving
Superior quality digitization of photographs, artwork, and cultural artifacts. The accurate color reproduction and minimal distortion ensure faithful digital representations of original materials for museums, libraries, and archival institutions.
Ultra-fine Detail Work
Precision inspection and quality control applications in manufacturing and electronics. The high resolution enables detection of minute defects and features not visible with standard resolution cameras, essential for PCB inspection and microassembly verification.
High-End Photo Applications
Professional product photography, catalog imaging, and artistic applications requiring exceptional detail. The Sony IMX586 sensor delivers DSLR-like quality in a compact form factor, perfect for e-commerce and marketing imagery.
Content Creation Tools
High-quality input for graphic design, 3D scanning, and digital content creation. The accurate color reproduction and sharp detail make it ideal for texture capture, reference photography, and asset creation for digital media projects.
Scientific Imaging
Research and educational applications requiring detailed visual documentation. The high resolution and consistent performance make it suitable for microscopy adjunct imaging, specimen documentation, and educational laboratory applications.
Ordering Information
SKU: CM_USB2_07
Vendor: Camemake
Lead Time: Typically 2-3 weeks for standard orders
Minimum Order: 10 unit (sample quantities available)
Customization: Available for volume orders (OEM inquiries welcome)
Support: Complete technical documentation, SDK access, and integration support available for commercial partners
Package Contents
Note: USB cables, mounting brackets, and other accessories are available separately. Please consult our accessories catalog for compatible options. Protective packaging ensures safe delivery of the sensitive optical components.
Technical Support
Camemake provides comprehensive technical support for the CM_USB2_07 module, including detailed integration guides, API documentation, and sample code for various platforms. Our engineering team offers consultation services for complex integration projects and custom requirements.
For developers, we provide a robust SDK that supports Windows, Linux, and macOS environments, with examples in multiple programming languages. Documentation includes detailed electrical specifications, mechanical drawings, and optical performance characteristics to facilitate seamless integration into your products.
